XR60

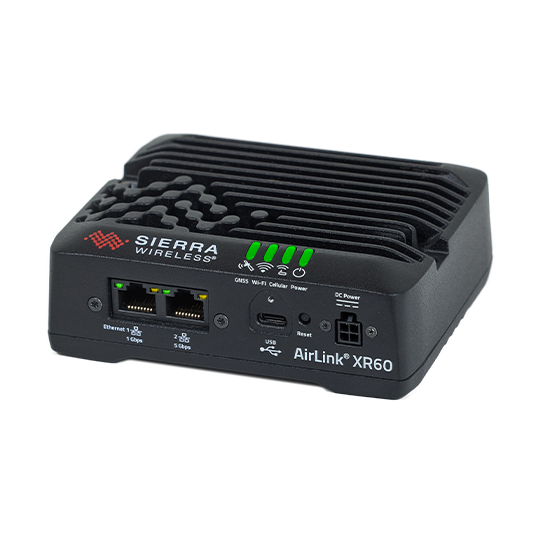

AirLink® XR60: World’s Smallest Rugged 5G Router
The ultra-compact and highly ruggedized AirLink® XR60 delivers high-performance 5G and Wi-Fi 6 connectivity to space-limited and harsh environments — from tight industrial enclosures to fast-moving vehicles.
With advanced networking capabilities, private network support, and edge computing capabilities, the XR60 future-proofs your connectivity and accelerates your digital transformation.
- 5G
- 2×2 MIMO Wi-Fi 6 (Optional)
- Single Serial / Single Ethernet (1 Gbps) or Dual Ethernet (1 Gbps + 5 Gbps)
- Dual-Band GNSS
- IP64 Rated
- AirLink OS with AirLink Complete
AirLink® XR60 – Router Specifications
|
KEY FEATURES
|
|
|---|---|
|
Cellular Radios
|
5G
|
|
Wi-Fi
|
2×2 MIMO Wi-Fi 6 (Optional)
|
|
Ethernet
|
1 x Ethernet RJ45 (1 Gbps) – Single Serial/Single Ethernet variant
2 x Ethernet RJ45 (1×1 Gbps + 1×5 Gbps) – Dual Ethernet variant |
|
Serial
|
Dual RS-232/485 (Serial/Ethernet variant)
|
|
GNSS
|
Dual-band 40 Channel GNSS
|
|
CAN
|
–
|
|
I/O
|
1 GPIO
|
|
USB
|
USB 3.2 Gen 1 Type-C® with power delivery and 5 Gbps LAN networking
|
|
Bluetooth
|
–
|
|
IP Rating
|
Sealed Aluminum Housing (IP64 Rated)
|
|
Services
|
AirLink Complete (1 year included)
|
|
Operating System
|
AirLink OS
|
|
Management System
|
AirLink Management Service (ALMS
|
Click on the link below for Documentation, Software and Firmware Downloads:
